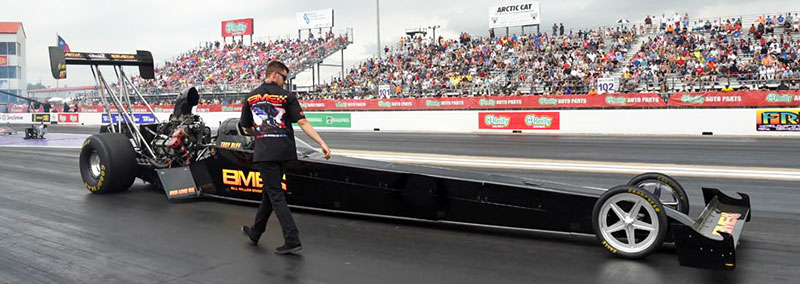

The BME Top Fuel Dragster backing up to
the starting line after a burnout at Houston in 2016. Image:
Auto Imagery. |
|
BME Top Fuel Dragster
Specifications and Component List
| chassis |
BME #02 |
| engine displacement
|
500 cubic inches
|
| power
|
10,000 horsepower
at 8200 rpm |
| weight
|
2350-lbs |
| wheelbase
|
300 in.
|
| engine block
|
Brad
Anderson Enterprises, forged aluminum |
| bore
|
4.187 |
| stroke
|
4.500
|
| bearings
|
Clevite 77 |
| crankshaft
|
Bryant or Winberg |
| connecting rods
|
BME Forged Aluminum Connecting Rods |
| pistons
|
BME Forged Aluminum Racing Pistons |
| piston pins
|
BME Wrist Pins |
| piston rings
|
Mahle |
| oil filter |
XRP |
| oil pump
|
System 1 |
| oil pan
|
Copperhead
|
| camshaft
|
Bullet Racing Cams |
| lift and duration
|
BME proprietary
|
| lifters
|
Crane Cams, 1 1/16 in. roller
|
| pushrods
|
IRC
|
| cylinder heads
|
Brad
Anderson Enterprises,
billet aluminum |
| intake valves
|
Manley, titanium |
| exhaust valve
|
Manley, Inconel |
| valve springs
|
Manley 500-lbs seat, 1200-lbs open |
| rocker arms
|
Stage 5
|
| supercharger
|
Gibson/Miller Mark II |
| supercharger drive gear oil |
Red Line Synthetic, Heavy Shockproof |
| injector assembly
|
Gibson/Miller
|
| fuel pump
|
Earp,
110-gpm at 8000 rpm |
| fuel system
|
BME
|
| hoses and fittings
|
XRP
|
| barrel valve
|
Pete Jackson
|
| ignition
|
MSD, dual
Pro Mag 44s
|
| spark plug wires
|
MSD Super Conductor
|
| spark plugs
|
Autolite AR5383 |
| oil
|
Red Line Synthetic,
SAE70 Nitro Racing Oil |
| fuel
|
90% nitromethane 10% methanol |
| engine and supercharger blankets
|
Taylor
|
| clutch
|
AFT,
10.5-in.,
6-disc |
| bell housing
|
Trick Titanium
|
|
| reverser
|
Moore Performance |
| chassis builder
|
BME/Bob Tobin
|
| steering
|
BME |
| wheels
|
Front,
Gibson Rear, Weld |
| front
tires
|
Goodyear Eagle Top Fuel Frontrunner |
| rear tires |
Goodyear Eagle Dragway Special, 36x17.5-16 |
|
rear axle assembly |
Chrisman,
12-in ring gear, 3.20:1 ratio |
| rear end oil |
Red Line Synthetic Heavy
Shockproof |
| brakes
|
Chrisman, carbon/carbon
|
| body fabrication
|
John and
Jerome Brown
ABC Metal Fabrication |
| parachutes
|
Taylor |
| data recorder
|
Race Pak
|
| wiring
|
BME
|
| driver
|
Troy Buff |
| team owner
|
Bill and Virgie Miller |
| crew chief
|
Bill Miller
|
|
|
